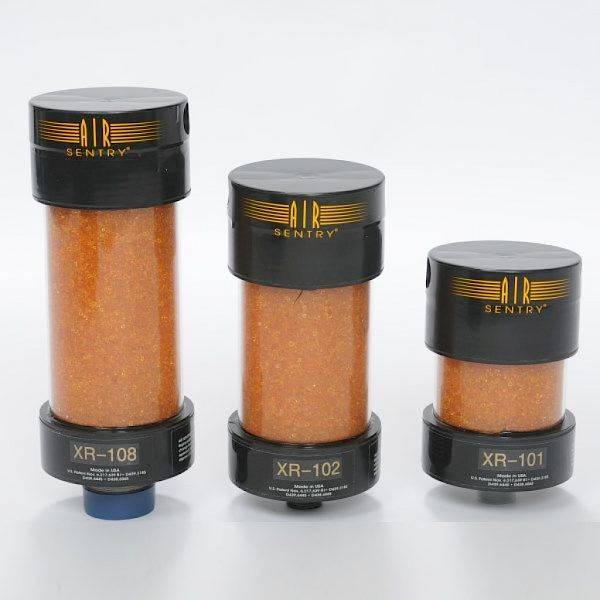

XR-Series breathers were originally engineered for the wind power industry but are designed to perform in any extreme environment where protection from dust, moisture and vibration is critical. These breathers include a metal reinforced base, available with male NPT threads to adapt to your equipment.

The base is designed to handle the rigors of high-vibration applications. The top cap uses two check valves to prevent outside moisture and solid contaminants from entering the breather until there is a need for airflow. The modular design allows for economical replacement of the desiccant cartridge.

All XR-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Applications:
• Windmills and Wind Power
• Mining Equipment
• Mobile Equipment

Specifications:
- Base Material: 100% Silica Gel
- Operating Temperature: -29°C to +93°C
- Check Valve PSI In/Out: 0.1 PSI or 2.1 PSI (varies by model)
- Mounting Connection: 1” NPT, 2” NPT
